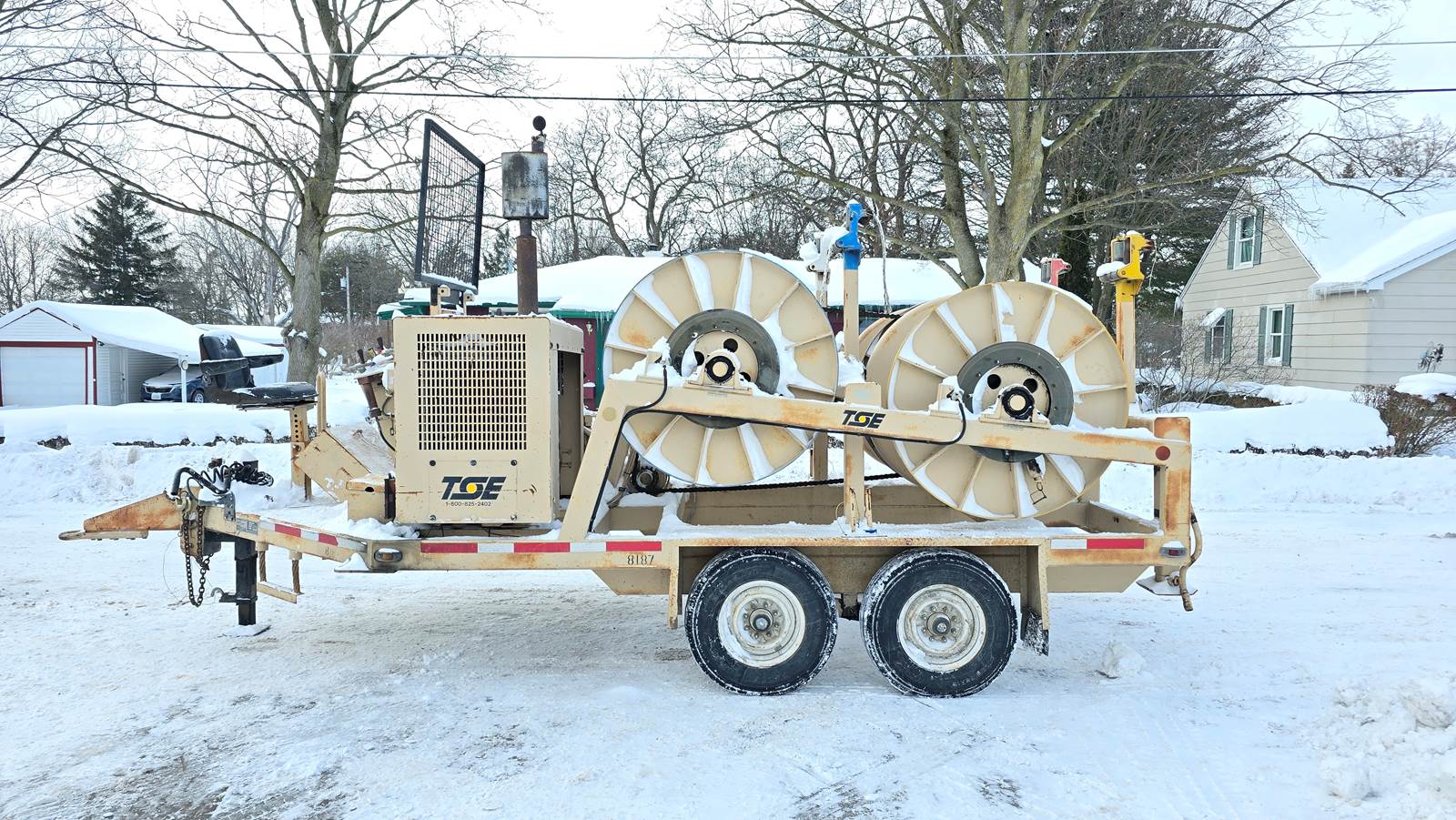

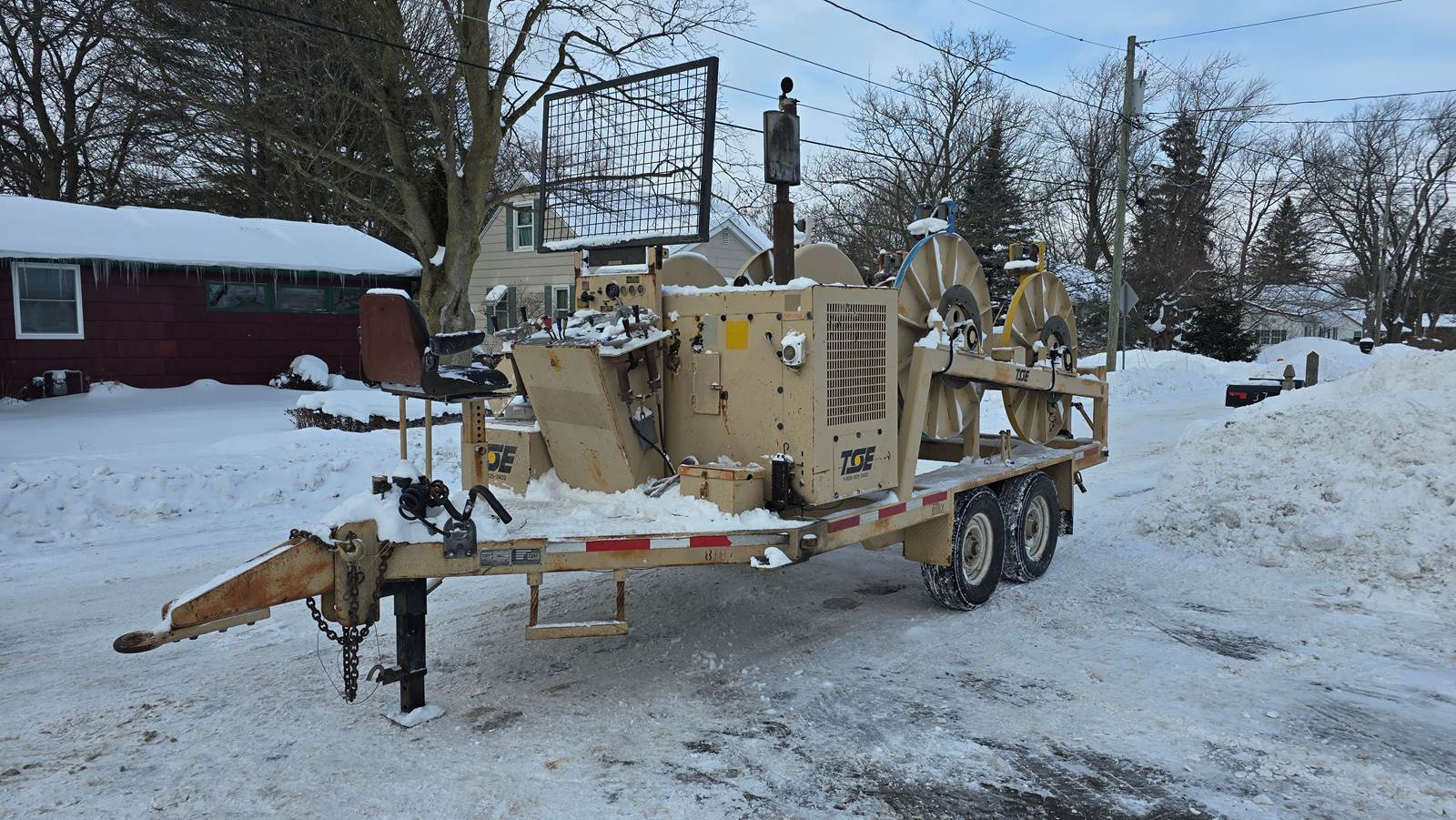

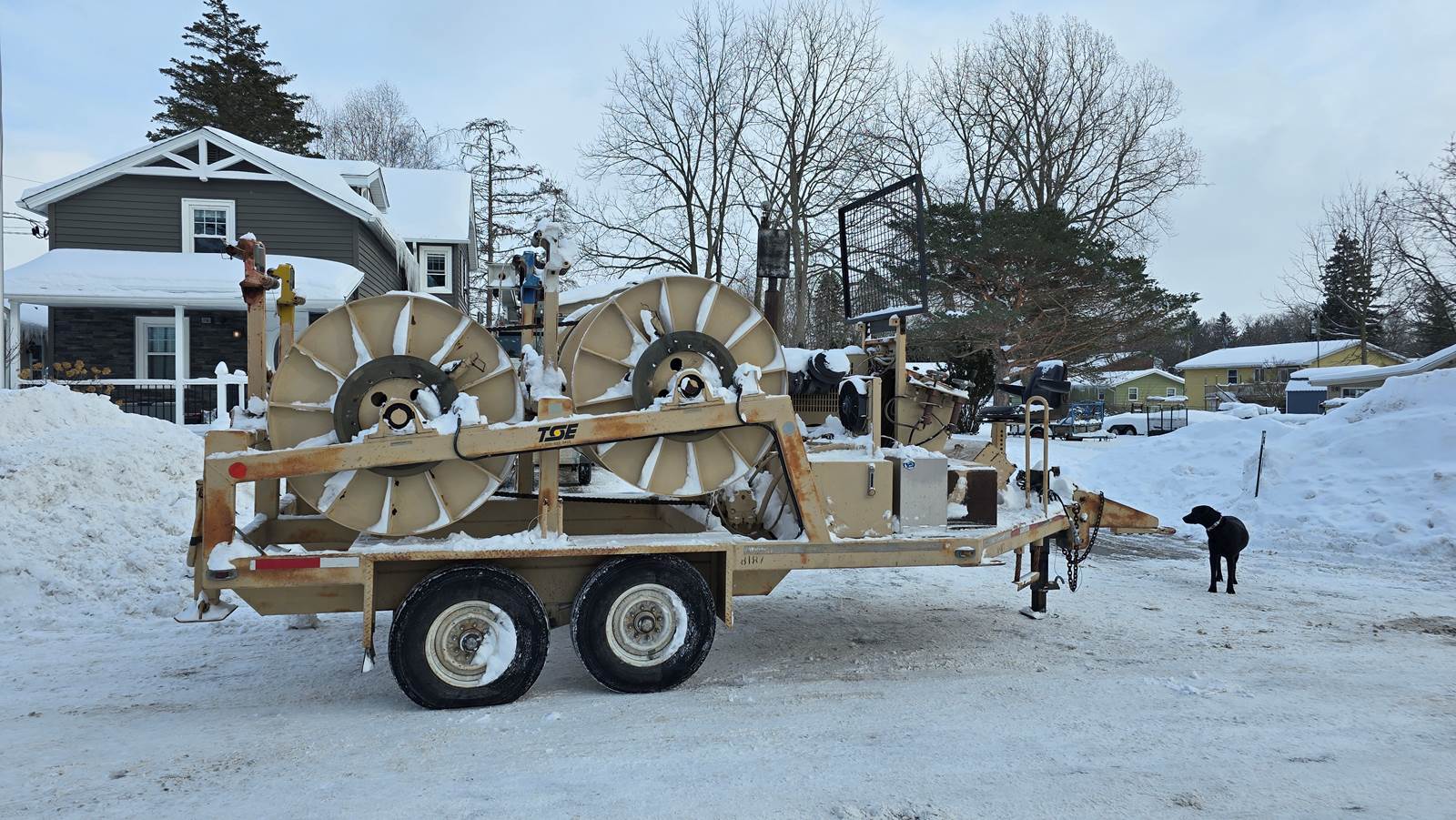

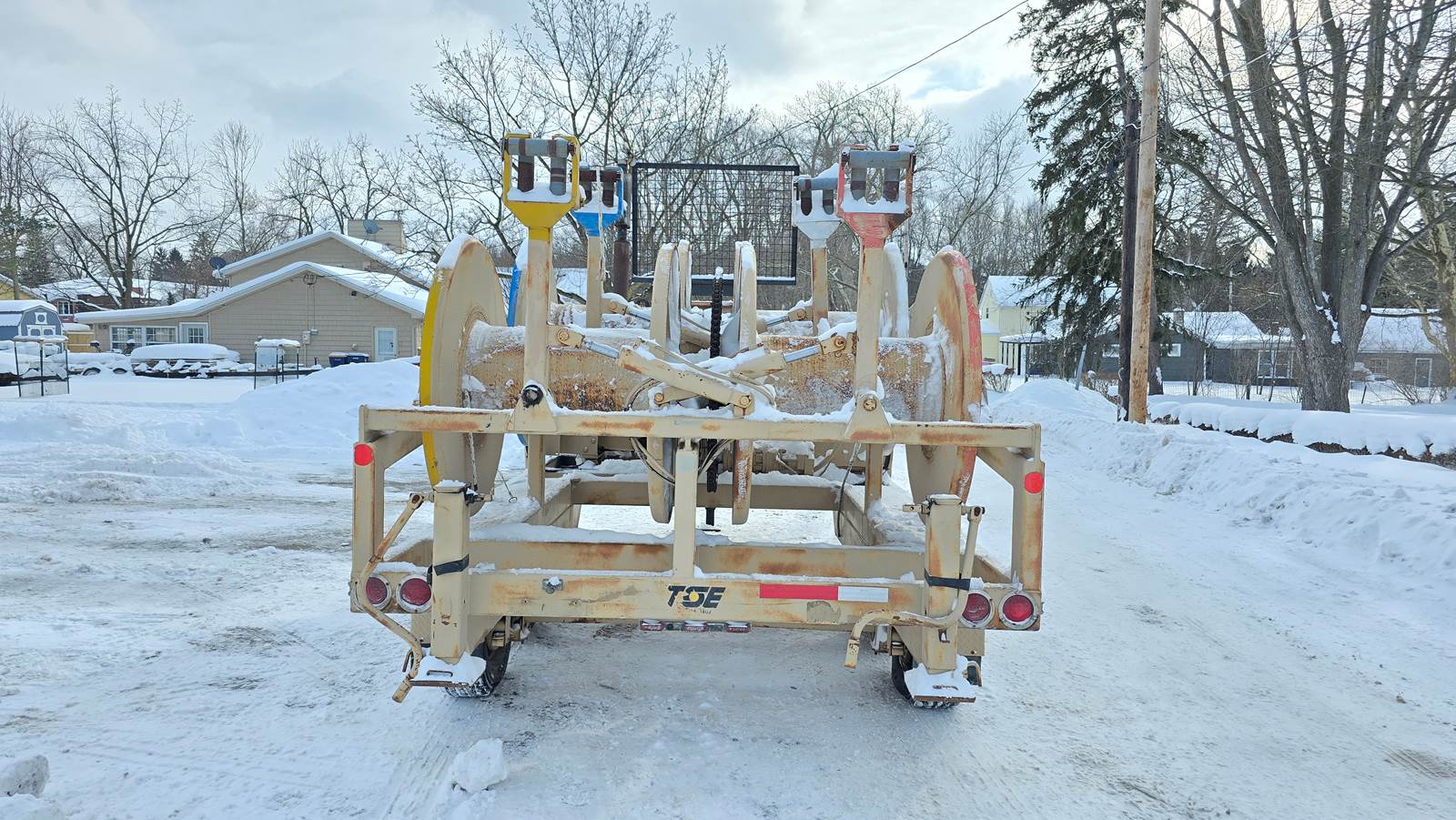

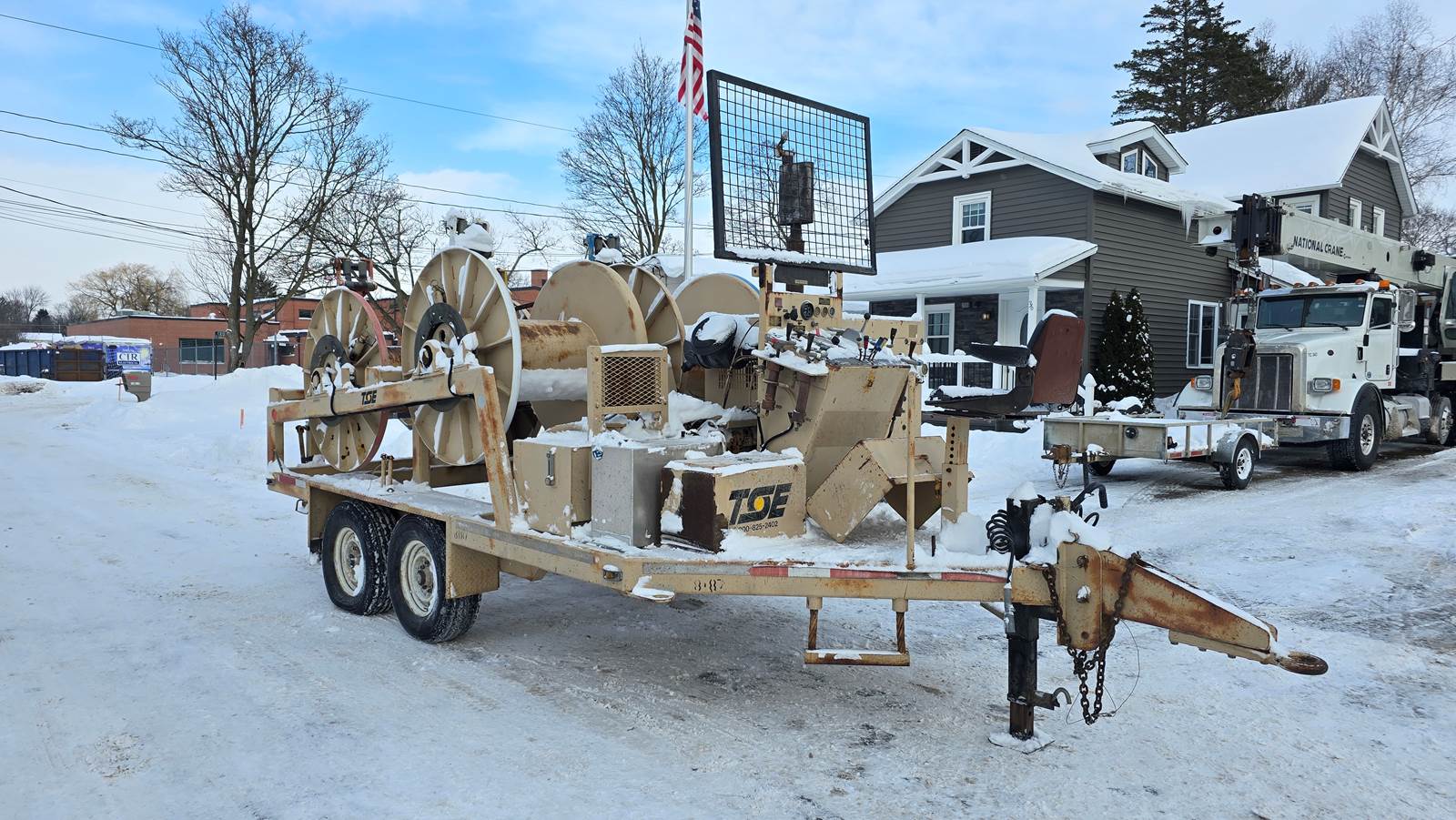

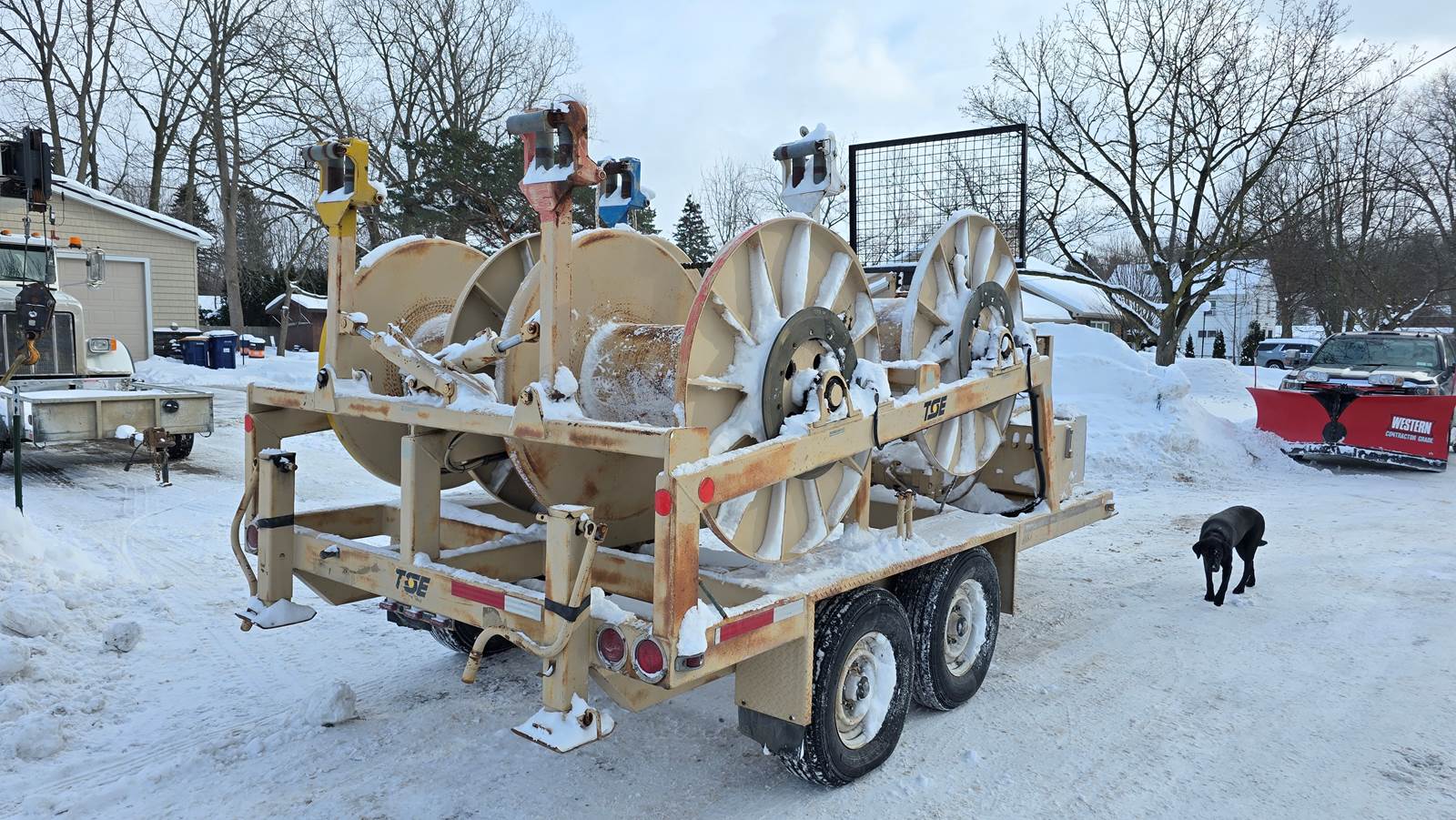

1998 TSE DP-40-4H Cable Reel Trailer

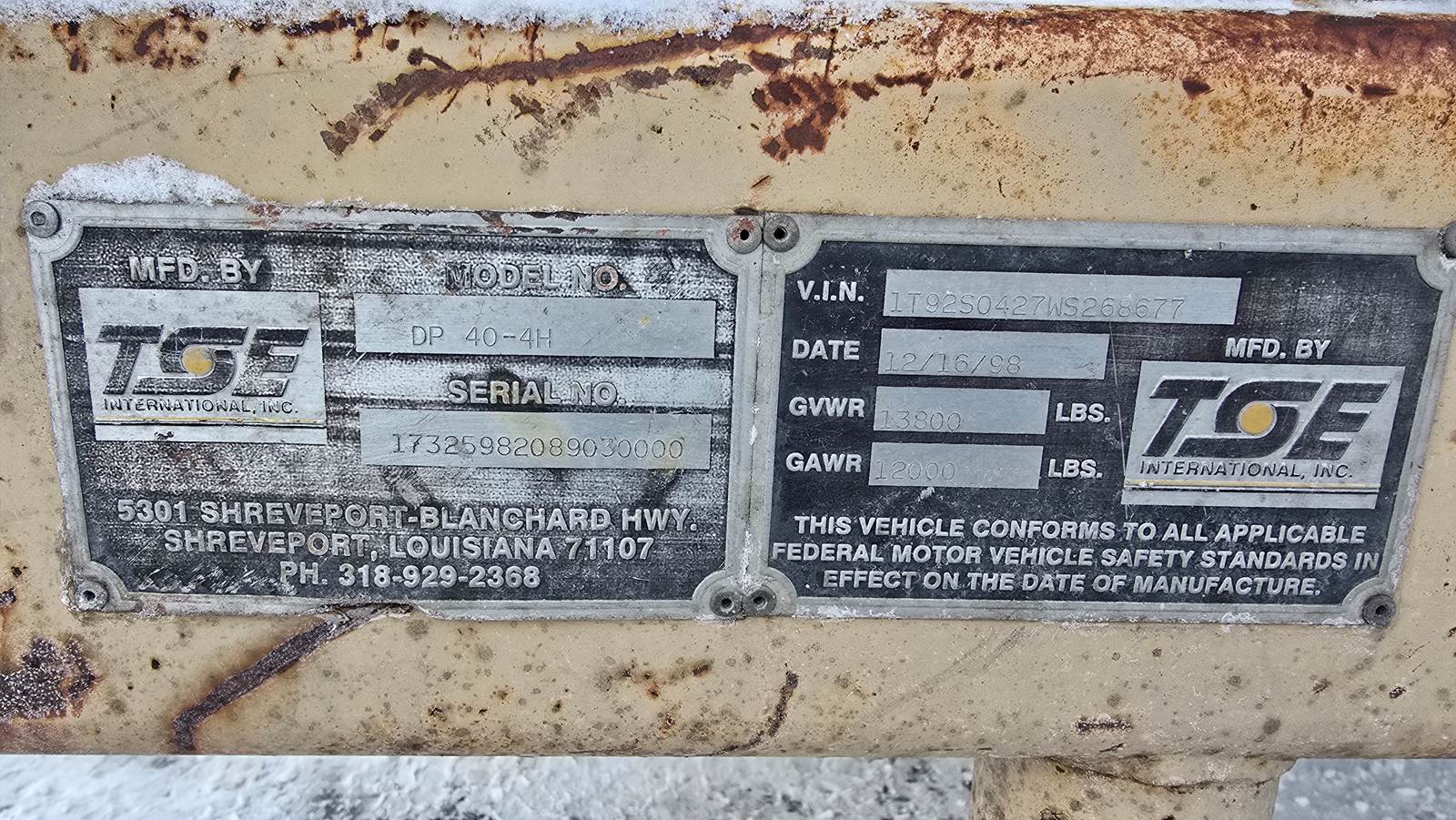

EQUIPMENT
MAKE: TSE
MODEL: DP-40-4H
SERIAL NO: 17325982089030000
HOURS: 144
ENGINE: JOHN DEERE 4045DF150 4.5L 71 HP DIESEL ENGINE

Model DP-40-4H 4000 lb. Puller for Conductor Installation Four Drum Puller with Four Separate Pulling Drums and Ropes Allow for the Simultaneous or Individual Pulling in of Three Conductors and an Earthwire.

STANDARD FEATURES:
• Proven hydraulic pulling system with mechanical clutch for each drum
• Infinitely variable linespeed and linepull control
• Spring-applied/hydraulic pressure released holding brake
• Four heavy duty pulling drums, each with capacity; for 10,000 ft. of 5/8’ diameter or 14,000 ft. of ½” diameter rope.
• Free-wheeling drum disconnect for high speed rope payout
• Bronze overspin brake on each drum
• Two hydraulic boom type levelwinds controlled for operators console
• Central operator’s position for maximum safety and visibility with engraved console panel
• Tandem axle trailer with leaf spring suspension

OPTIONS:
• Four hydraulic levelwinds (one for each drum)
• Hydraulic actuated brake calipers for bronze over spin brakes on each drum
• Automatic landscrew levelwind(s)

PERFORMANCE: (single drum)
• Continuous Torque Rating: 92,000 in.- lbs
• Intermittent Torque Rating: 100,000 in.-lbs.
• Continuous Line pull Rating: 4,000 lbs. Full drum
• Speed: 0-4mph Full Drum

DRUM CAPACITY:
• Drum Outside Diameter: 48”
• Drum Width: 31”
• Drum Core Diameter: 18”
• Drum Rope Capacity: 10,000 ft. of 5/8” diameter

DRIVE SYSTEM:
• Engine: 71 H.P. Water-cooled Diesel
• Hydraulic Drive: Closed Loop Hydrostatic
• Drive Train Brake: Spring-applied/hydraulic released
• Drum Engagement: mechanical clutch on each drum
• Free Wheeling Disconnect: Standard on each Drum
• Bronze Overspin Brakes: 24” diameter on each Drum

TRAILER:
• Axles: Tandem with Leaf Spring Suspension
• GAWR: 12,000 lbs.
• GVWR: 13,800 lbs.
• Trailer Brakes: Electric
• Tires: (4) LT 235/85SR15 ‘G’
• Tow Hitch: 3” Pintle Eye with 4 Height Adjustments
• Front Jack: Drop Leg Manual Screw Type
• Trailer Lighting: D.O.T. 4 Light System, 7 Wire Connector
• Fenders: Diamond Plate with Mud flaps

UNIT DIMENSIONS:
• Length: 21 ft. 9in.
• Width: 8 ft. 0in.
• Height: 9 ft. 8in..
• Weight: 13,000 lbs

GENERAL FEATURES:
• 19 Gallon fuel reservoir with level gauge
• 30 gallon hydraulic reservoir with level gauge and temperature gauge
• Operator’s protective screen
• Elevated operator’s position for full view of pulling operation
• Individual drum clutch controls and bronze disc brakes for payout

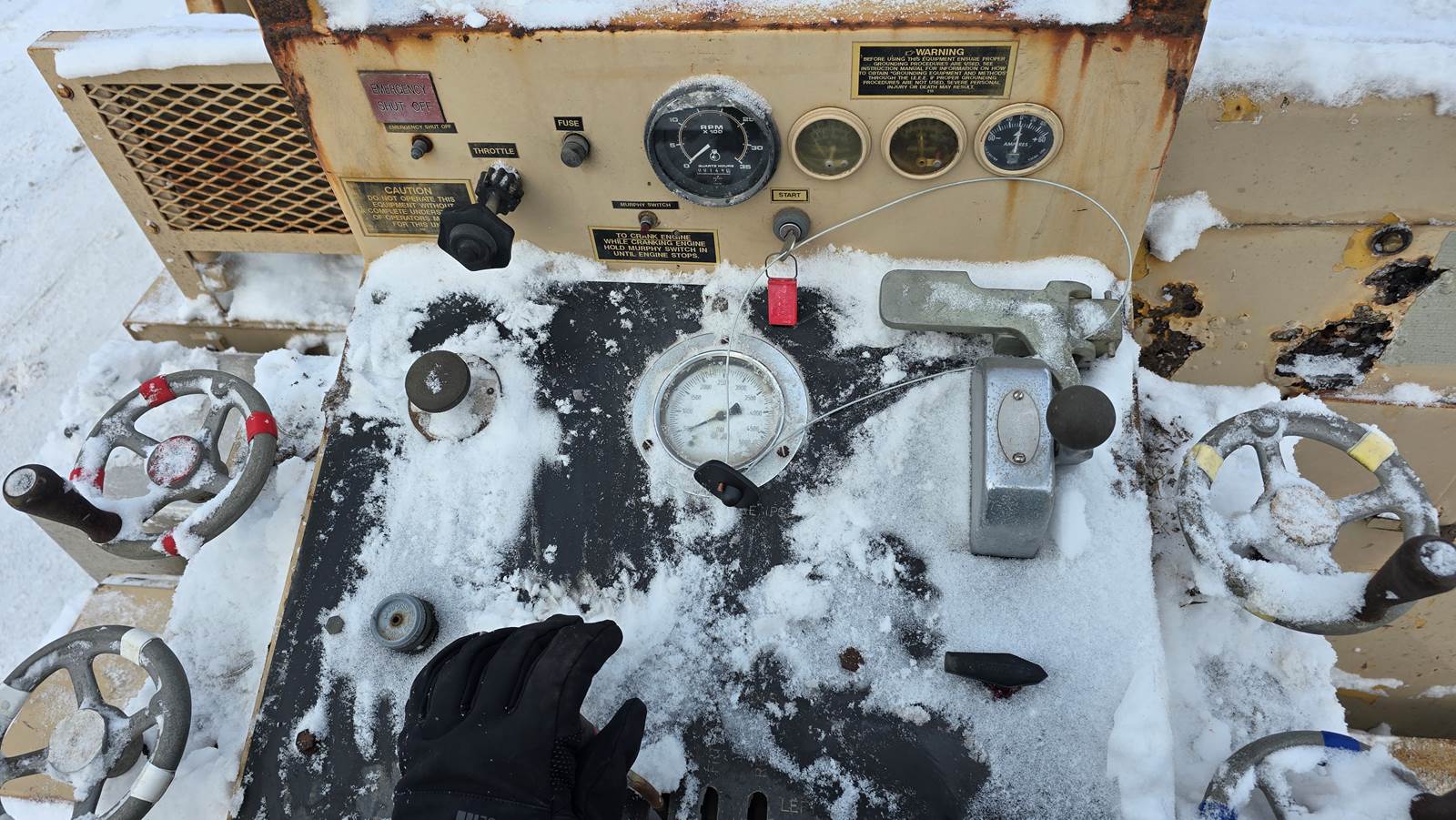

OPERATOR CONTROLS:
• Direction control lever with infinite speed adjustments and anti-payout stop
• Adjustable pull/tension control with limit if present tension is reached

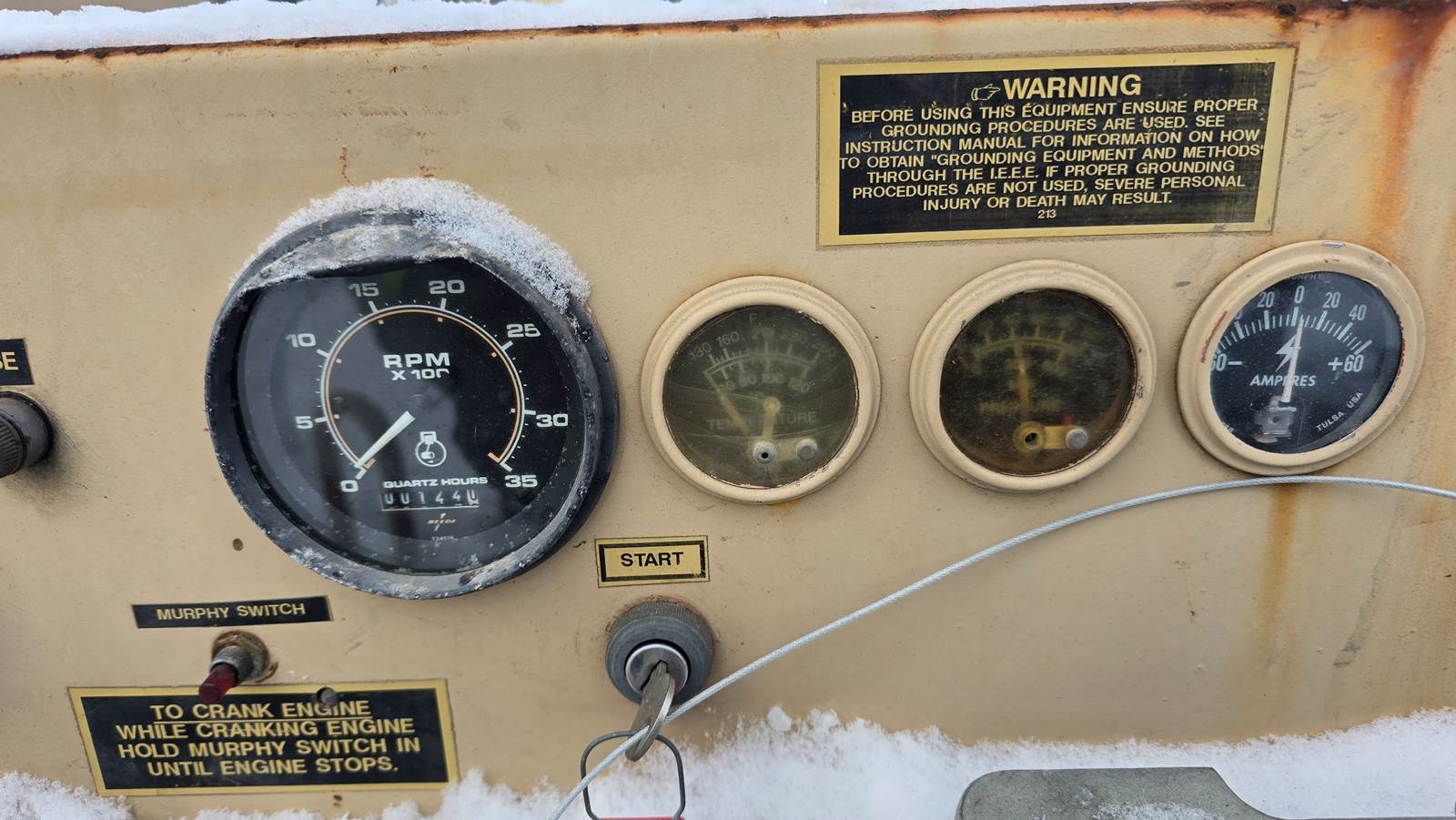

• Hydraulic system pressure gauge
• Engine throttle control
• Engine choke control
• Permanently engraved operator’s control panel
